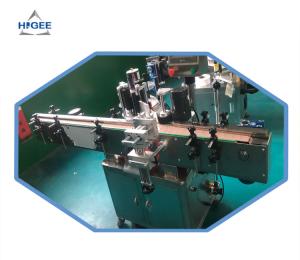

Automatic Vertical Vials / Bottles Sticker Labeling Machine ISO9001 CE Approval

Name: Automatic Vertical Vials Bottles Sticker Labeling Machine ISO9001 CE Approval
Brand: HIGEE
Price: 1 USD

Wholesale Automatic Vertical Vials / Bottles Sticker Labeling Machine ISO9001 CE Approval from china suppliers

Brand Name : HIGEE

Model Number : HAY-200

Certification : ISO 9001 ,CE ,

Place of Origin : China

MOQ : 1 set

Price : negociated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 sets

Delivery Time : 30

Packaging Details : Wood case

Name : Round bottle labeling machine for Glass bottle

Model : HAY200

Labeling speed : 100-200 pcs per minute

Label material : Adhesive sticker

Applicable Diameter of Bottle Body : 30-120mm

Applicable Hight of Bottle Body : 30-280mm

Weight : 400 kg

Contact Now

Automatic Vertical vials/ bottles sticker labeling machine of ISO9001 CE GMP

Application :

This HAY -200 wrap around Labeling machine, which has a positioning system,suit for different kinds products that need labeling on round bottle wrap around,such as round bottle, jars and so on.

Feature :

This kind labeling machine is suitable for any round or cylinder bottles of bottle of wine,medicine,drinking,chemicals,agrochemical etc. It can pick up any point/logo on products and orientation labeling.
its features simple structure and operation, attaching accuracy ,reliable property,small power and no noise.
The whole machine adopts mature PLC control system to ensure the stable running in high speed; Touch screen makes easy reading and excellent looking. More than 10 groups of labeling parameters saved, makes setting rapidly.
Labeling is performed smoothly with no creases with the use of elastic cotton idler wheel;
Automatic photoelectric detection functions including canceling labeling without objects there and stopping running or raising an alarm without labels to use to avoid omitting or wasting labels

Specification and parameters :

Label width	10-240mm
Label length	30-350mm
Labeling speed	40-120pcs/min
Labeling accuracy	±1mm
Power supply	500W , 220V,50Hz/60Hz
Label reel inner diameter	76mm
Label reel outer diameter	300mm
Machine weight	250kg
Machine size(L×W×H)	2000×900×1700mm
Control system	Japanese Mitsubishi PLC

No.	part	brand	quantity
1	PLC	MITSUBISHI(Japan)	1
2	Main converter	DANFOSS(Denmark)	1
3	HMI	WEINVIEW(Taiwan)	1
4	Servo labeling motor	DELTA(Taiwan)	1
5	Servo labeling motor driver	DELTA(Taiwan)

Automatic Vertical Vials / Bottles Sticker Labeling Machine ISO9001 CE Approval

FAQ

1.Q: What label material does your machine use ?
A: Self-adhesive sticker,could glue, hot glue, opp etc. whether the label are in roll or pieces
2. Q: The machine is automatic or semi-auto?
A: we have automatic and semi-automatic labeling machine for round containers and flat surface.all of labeling machine can according to your requirement to customized .
3. Q: Which kinds of printer do you have ?

A: Yes, you can add coding machine, inkjet printer , lasser printer etc, these printer can printing

production date, batch numbers,letters etc. can print at most three lines.

4.Q: what’s the height of rubber roller ?

A:our standard rubber roller height is : 140 mm and 180 mm ,we have these parts in our

warehouse . if our labels to high ,we can according to your labels size to customized .

5.Q: what’s the label roll inside diameter ?

A: our label roll inside diameter: 76mm

6. Q: The machine can connect with the product line or not ?

A: Our labeling machine can connect with production line or put on the production line or operation alon all ok as you need .
